Model	SGW-280DQ
Capacity (L)	280
Dimension (LxWxH)(mm)	800x1450x1500
Chamber Dimension(mm)	Ø600x1000
Net Weight	720Kg
Power	16W
Chamber Material	SUS304
Sterilization Temperature	115-135°C
Rated Working Pressure	0.25Mpa
Pressure Gauge Range	-0.1-0.5Mpa
Safety valve pipping pressure	0.29Mpa
Sterilization time range	1-6000 minutes
Drying time range	0-300 minutes
Pulse times	1-99 times
Vacuum degree	≤-93kpa
Vacuum leakage rate	<0.13kpa/minute
Controller	PLC industrial control system
Sterilization mode	Fabric, Device, Liquid, B-D test, Vacuum test, self-defined
Safety device	Evenly distributed inter locker, auto door lock, water level detection, safety valve, over pressure protection, trouble shooting, electric protection.
Accessory	Stainless steel with wheel (x2), storage plate
Option	Load thermometer, printer, water supply pressure sensor, trolley,3Q interface, 3Q/4Q calibration
H models	Material can be updated to SUS316 controller updated to Siemens industrial control system
Power supply	Three phase five wire system,380V, 50/60HZ,

Autoclaves

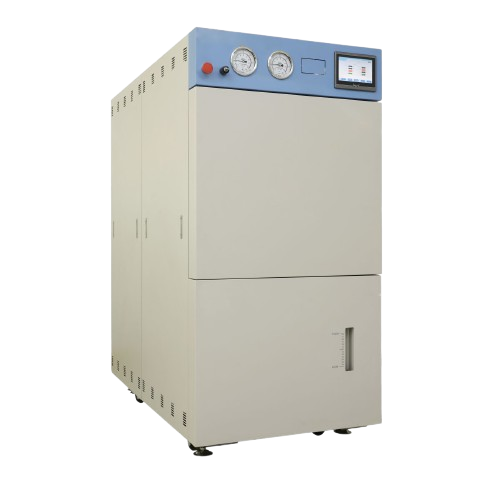

Horizontal Autoclave

Model: SGW-280DQ

Key Features

Automatic Door

Just push the chamber door gently, the system will lock automatically, click the open button, and the chamber door will open automatically.

Air Filtration

Equipped with imported air filter, the filtering effect can reach 0.1um level, and the performance is much better than the traditional 0.2um level, so as to ensure that the clean gas enters the cavity.

Rapid Cooling System

After sterilization, the coil type jacket is filled with cold water, and the rapid cooling system is started to speed up the cooling process, especially suitable for cooling after sterilization of liquid culture medium

Pulse pre vacuum+ vacuum drying

Use the world’s first class vacuum pump to ensure good pre vacuum effect and fast vacuum drying speed

PLC industrial control system

Professional industrial control system, with high stability, realizes full-automatic dynamic control of sterilization process, and can be easily maintained, queried, verified, recorder expanded and upgraded

Independent steam generator

It adopts high-power three-way heating devices to automatically generate steam to supply the chamber of sterilizer, and has the functions of automatic control of water inflow, heating, dry burning prevention, overpressure prevention, etc

Six stage steam exhausting

Six different exhaust speeds can be selected after sterilization to speed up the cooling process and prevent overheating.

Zero steam discharge, drainage temperature can be set

Provide large capacity water tank, when can set the temperature of sterilization water discharge

LCD touch screen

Multilingual LCD touch screen, dynamic display of various states by means by text, data and diagram, convenient man-machine dialogue editing operation steps by means of touch control
