Model	SFA-29A
Model Difference	Model A: Standard Model R:A+drying Model E:A+plus (0-9 times)
Capacity(L)	29
Outer Dimention (LWH,mm)	460x542x960

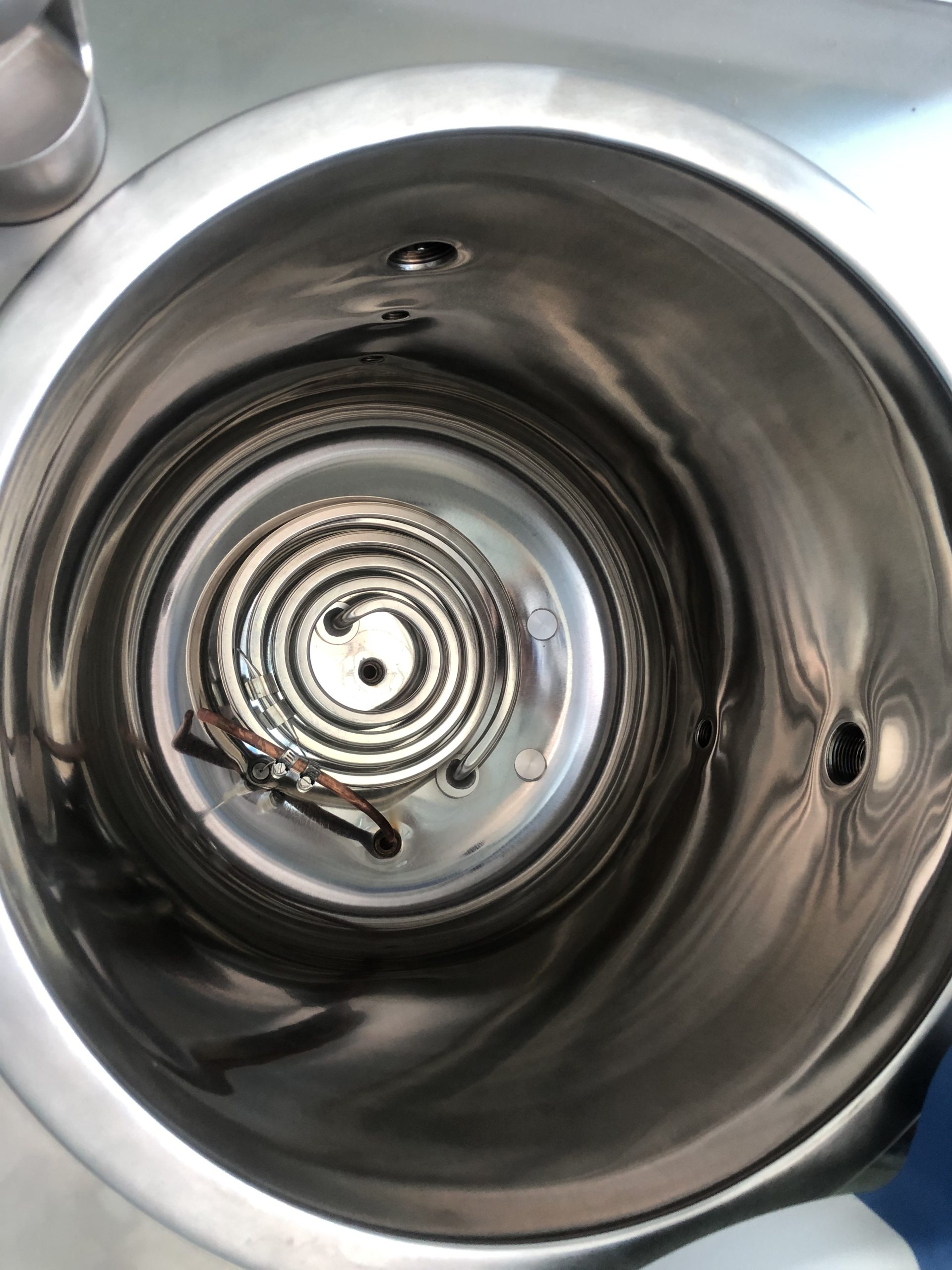

Sterilization Chamber (Dia*mn)	Ø325x381
Rated Power Supply	220V 50Hz,60Hz
Rated Power(W)	2600
Working Environment	5˚C ~45˚C, relative humidity 10%-85%
Chamber Material	SUS 304 stainless steel
Sterilization temperature	105-135˚C
Stainless steel basket (Dia*H,mn)	( 300x260)x1
Sterilization time range	1-300 min
Drying time range	1-300 min (drying function only for R Series
Range of pressure guage	-0.1-0.5Mpa
Controller	Microcomputer control System
Mode	Solid Mode, Liquid Mode
Safety Device	Self-induction interlocking device, lid closing checking, over temperature protection system, dry scorch protection, over pressure protection, safety valve, over current and short circuit protection, cover checking system, electric leakage protection, scale protection, automatic failure-inspection system
Standard Accessories	Stainless steel baskets, waste bottle, water plate, drainage hose
Optional Parts	Printer, printing set, stainless steel pails

•Safety-induction interlocking devices to avoid risk of misuse
•Dual overpressure protection system: upon detec tion of any abnormal pressure, system will relieve pressures or discount power supplies
•Over temperature protection system: power supply will be discounted for protection upon detection of over temperature
•Dry scorch protection system: power supply will be discounted for protection upon detection of overlow water level
•Cover Checking system: system can automatically check the locking of the cover, if the cover is not tightly locked, the autoclave can’t be started
•Electric leakage, over current and short circuit protection: system will discount the power supply to avoid an electricity shock or other accidents
•Unique anti scald cover and bench: nice look and avoid causing corrosions and scald

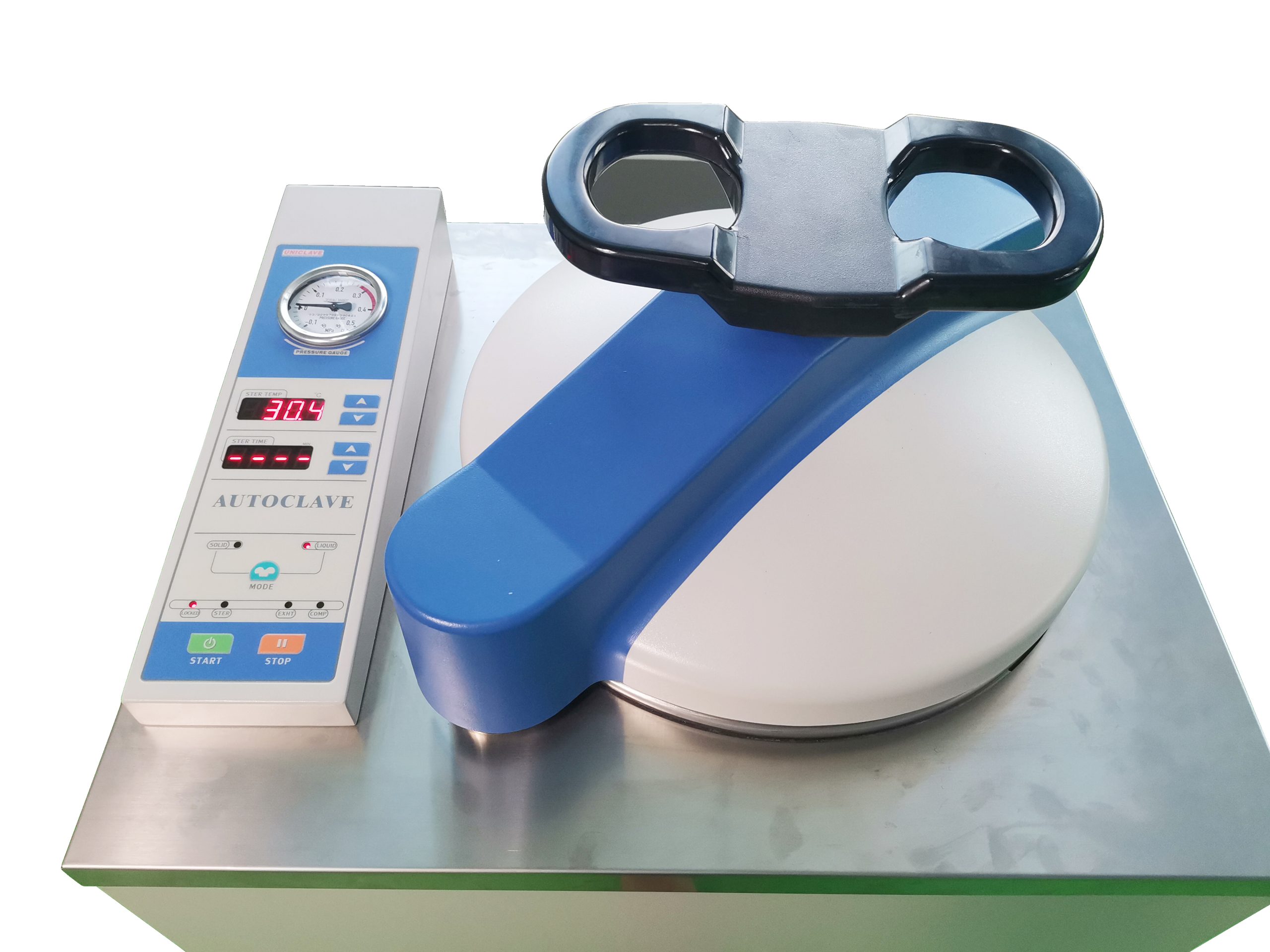

Universal Autoclave

Model: SFA-29A

Key Features

Microcomputer control system
Sterilization process can be pre-set and completed automatically
Solid mode, liquid mode
Simple and easily understandable control panel to show the sterilization temperature, sterilization time and dying time at the same time, pressing separate key to set the temperature and time makes the operation easier
System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects
LED screen clearly shows the dynamic sterilization process
13 error detection procedures to monitor the normal operation of the instrument
