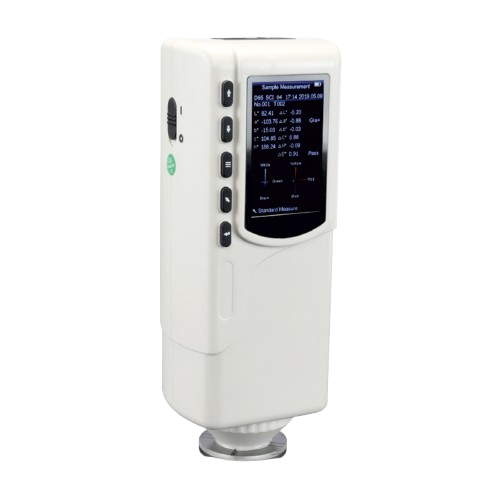

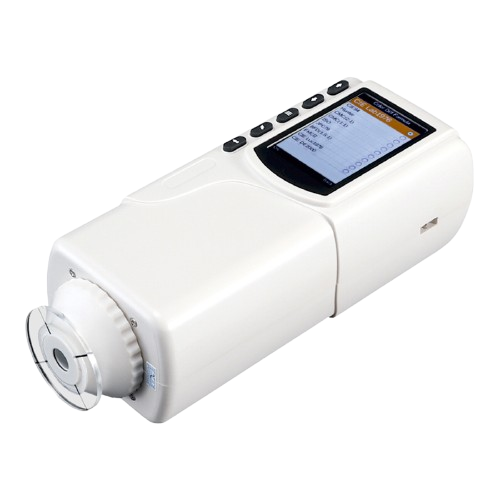

Colorimeter

Model: ST-CP60

Colorimeter
ModelST-CP60
Illuminang/Viewing Geometry8°/ d
Light SourceLED Light
SensorSilicon photoelectric array
Measuring apertureΦ8mmflat aperture; Φ4mmp aperture
Color SpaceCI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference FormulaΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromacity DataWI ( E313,CI E, AATCC ), YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
ObserverCI E 10°
IlluminantD65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Display DataColorimetric Value, Color Difference Value/Graph, PASS/ FAIL Result, Color Offset,
Measuring Time0.4s
RepeatabilityΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrumentwithin Delta E*ab 0.2
Dimension205*67*80mm
Weight500g
Batteryrechargeable lithium-ion baery 3. 7V @ 3200mAh
Lamp Life5 years, more than 1.6 million measurements
ScreenTFT 2.8 inch? (16: 9)
InterfaceUSB/ RS- 232
Storage100 Standards, 20000 Samples
Operating Temperature0~40°C (32~104°F)
Storage temperature20~50°C (-4~122°F)
PC softwareCQCS3 software
  • Miniature thermal printer
  • Powder test box
Coating & Color

Colorimeter

Model: ST-CP60
ST-CP60 cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers. Color Measurement is so easy.

Key Features

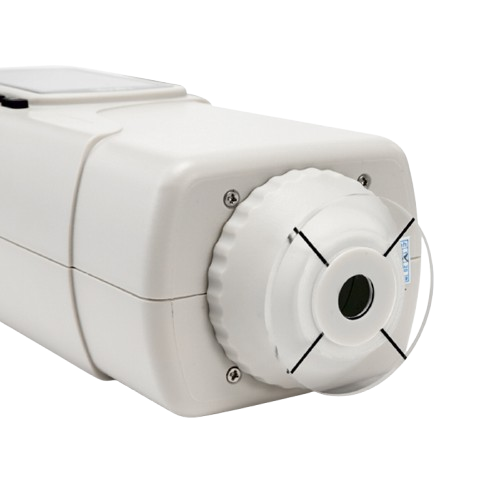

  • Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
  • Higher measurement stability and accuracy, Delta E ab<0.03.
  • More color spaces, various color indexes, extensive applicability.
  • Double locating: illuminating locating and cross locating.
  • Configured with high-capacity rechargeable Li-ion battery.
  • Built-in white plate parameters and physical white calibration board, easy to operate.
  • New integrating sphere optical path design, more stable measurement
  • Measurement data can pass national metrology authentication.
