Coating & Color

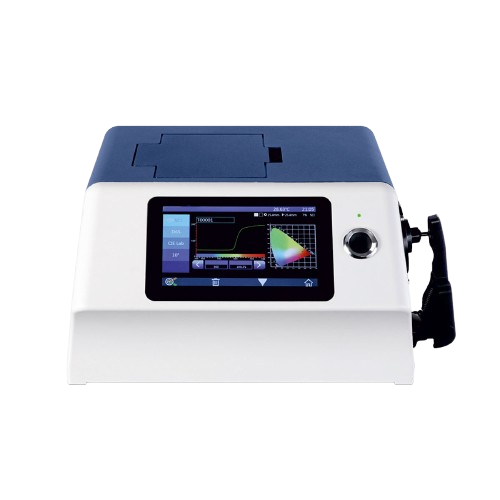

Benchtop Grating Spectrophotometer
Model: ST-606
ST-606 is a benchtop grang spectrophotometer which is developed by Stalwart independently with independent intellectual property. ST-606 has many features, like 7 inches TFT capacive touch screen display, full illuminants, reflecve d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC soware all makes ST-606 ideal for color analysis within R&D and laboratory environments.
Key Features
- High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.
- Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp.
- With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.
- Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
- Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.
- Wavelength range 360nm – 780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
- Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
- Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.

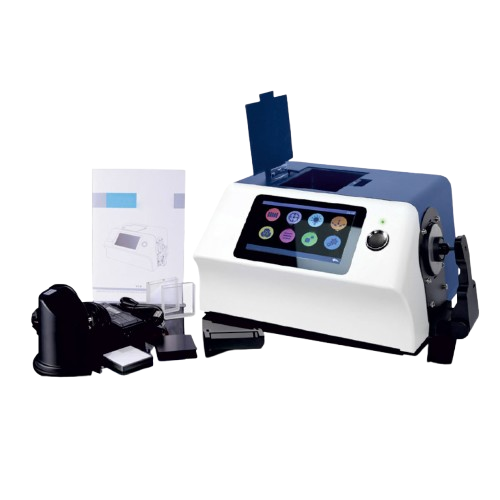

- Multiple accessories, sample holders, fixation clamp, suitable to more working condition.
- Big capacity data storage, for 40000 pieces test result.
- Built-in camera locating.
- More powerful extended functions at the PC software.
